IC Heaters
Leading Manufacturers, Wholesaler of Infrared T-962 IC Heater, Infrared T-962C IC Heater and Micro Processor Controlled IC Heater from Kanpur.
| Business Type | Manufacturer, Supplier |
| Power Source | Electric |
| Warranty | 1 Year |
| Max Heating Area | 350mm X 300mm |
| Power Consumption | AC110V/50Hz Or AC220V/60Hz |
| Automatic Grade | Automatic |
| Temperature Range | 0-280 |
| Display | Digital |

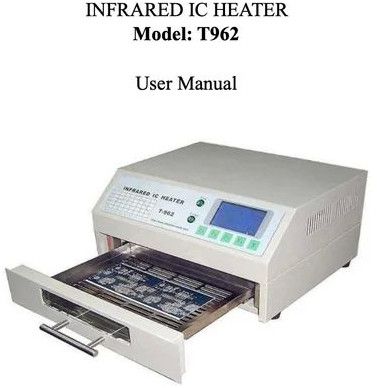

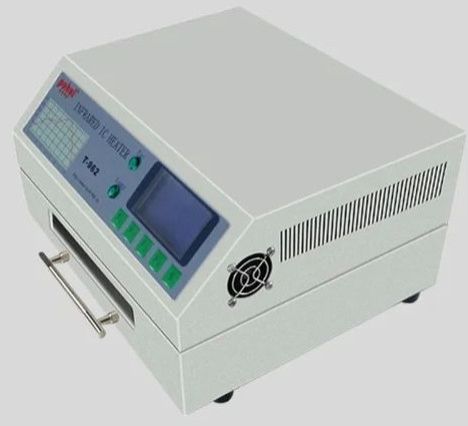

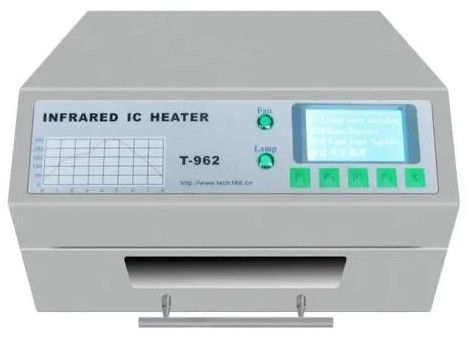

The Infrared IC heater T962 is a Microprocessor controlled reflow-oven. It can be used to effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow so the temperature is being kept very accurate and evenly distributed.A windowed drawer is designed to hold the workpiece and allow safe soldering techniques and the manipulation of SMD/BGA and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
| Business Type | Manufacturer, Supplier |
| Finishing | Polished |
| Automatic Grade | Automatic |
| Application | Industrial Use |
| Country of Origin | India |
| Max Heating Area | 400mm x 600mm |
| Input Voltage | 230 V |
| Power Consumption | AC110V/ 50Hz AC220V /60Hz |
| Max Temperature | 300 Degree C |

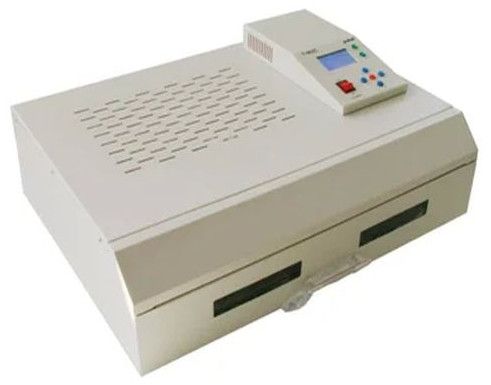

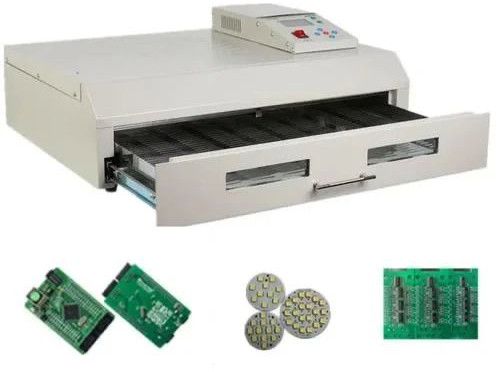

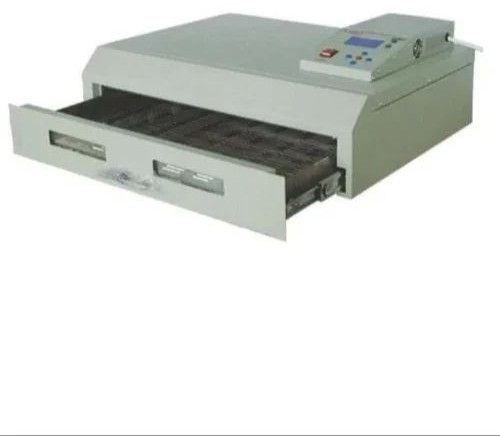

Infrared IC heater T-962C works automatically by Micro-computer control. Can satisfy a dissimilarity SMD/BAG soldering a request. Whole soldering process to complete automatically,easy to use, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very accurate and even. The faintness controls a technique and Can see drawer type workbench, Make whole soldering process at you of the under surveillance automatic completed. Can soldering the smartest small part. Adopted a high and dependable design, make what you use gratifying and rest assured.
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Power Consumption | 1.5 KW |
| Input Voltage | 230V |
| Automatic Grade | Automatic |
| Capacity | 0-100 Kg |
| Max Temperature | 200-300 DegreeC |
| Air-Flow Direction | Vertical Down Air Flow |
| Display | Digital |
| Output Current | 0-100 A |
| Max Heating Area | 350mm X 300mm |
Details :

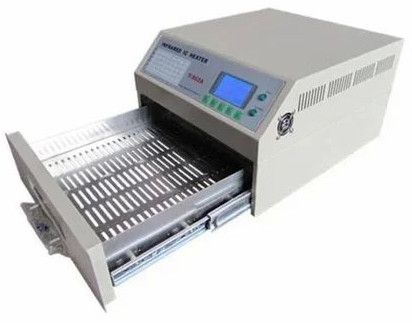

- The T962A is a self-contained Micro-Processor controlled IC Heater and solder rework station.
- Uses up to 1500 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 300×320mm area.) Parameters of Eight (Soldering cycles are Pre-Defined
- Soldering cycles are keypad selected and progress displayed on the T962a LCD.
- A single windowed drawer holds assemblies within the heating chamber,
- The T962A design is ergonomic, practical and easily operated.
- The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
- The T962A design is ergonomic, practical and easily operated.
- The T962A is an economical rework solution from single runs to on-demand small batch production.
