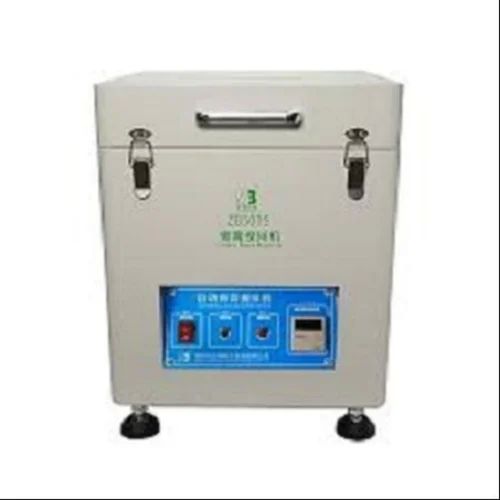

Automatic Solder Cream Mixer

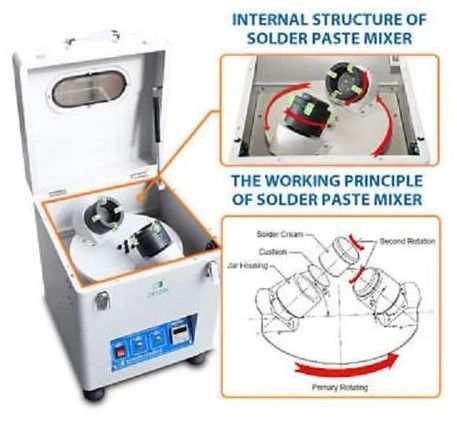

ZB500S Automatic Solder Cream Mixer makes solder cream move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution.

Solder cream located in the tank bottom makes upward movement from the surrounding, which forms a tornado-funnel shaped stirring action, and it can stir, soften and defoam the solder cream with appropriate viscosity.

Solder cream has good wettability, even diffusivity, excellent printing effect after mixing, which achieves the best welding performance when reflowing soldering. Its characteristics are as follows:

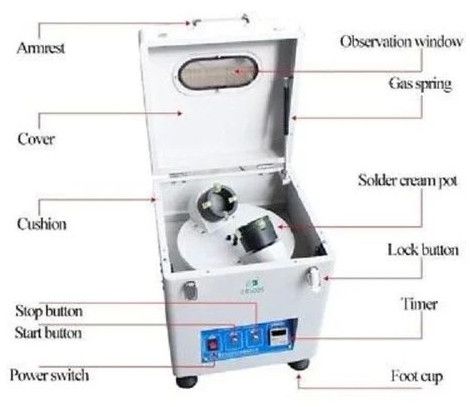

• There is special control circuit, adjustable mixing time and easy operation.
• Solder cream is placed by 45 degrees and rotates along axis direction and solder cream won't stick to the pot cover.
• Smooth operation, low noise, temperature return naturally and bubble remove in the process of mixing.
